    Hot sale ! FCYJ-2E underground trackless electric LHD

    Ask Lasest Price
    Brand Name : Fucheng
    Certification : ISO9001 CE
    Model Number : FCYJ-2E
    Price : 110000-120000 USD
    Delivery Time : 20 days after payment
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    • Product Details
    • Company Profile

    Hot sale ! FCYJ-2E underground trackless electric LHD

    Hot sale ! FCYJ-2E underground trackless electric LHD

    Product Description

    Features Features:

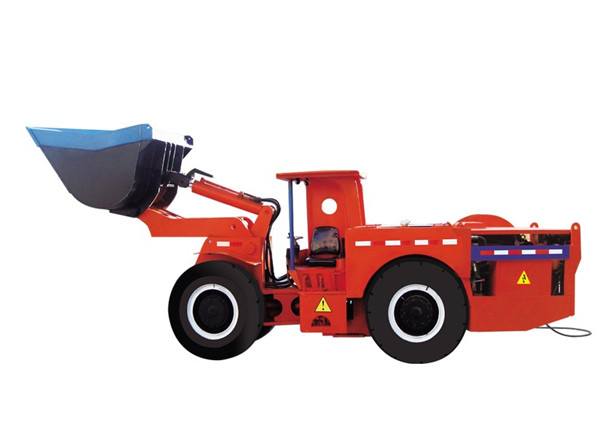

    1.FCYJ2E Underground Electric Scooptram is mainly used in underground mining abd tunnel, the driving system adopts American DANA Torque converter and gearbox, which is of easy operation and smooth running.

    2.The braking system adopts hydraulic double pipe working system, and equipped with multidisk wet braker, self-developed anti-skid differential mechanism of NO-SPIN, performs rather well even in bad conditions like harsh, high water saturation environments and muddy tunnel.

    3.The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. Using pilot valve equipped with ergonomics handle to control the bucket arm lifting and bucket tilting.

    4.Elaborate designed and manufactured electric scooptram has beautiful shape and high work efficiency. Mainly used for mine, loading and transporting the loose material which is left after bursting. It can also be used for tunnel engineering such as underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working platform, low and muddy working face.


    Main Technical Paramete:


    Motor Model: Y2-250-4

    Motor Power: 60KW

    Motor Voltage: 380V

    Torque Converter: C273.1-295

    Transmission System: RT20324-12

    Drive Axle Type: NO—SPIN

    Braking System: Working Braking,

    Parking Brake

    Bucket Capacity: 2 m3

    Max. Lifting Height: 3740mm

    Min. Ground Clearance: 250mm

    Total Weight: 12T

    Gradeability: 16°

    Max. Traction: 100KN

    Max. Shovel Force: 80KN

    Hydraulic Tank Capacity: 156L

    Running Speed: 0-10km/h

    Control Voltage: AC36V

    Lighting Voltage: AC24V

    Steering Angle: ±33°

    Min. Turning Radius: 5200mm

    Dimensions(Length* Width*Height): 7300 * 1500 * 2050mm



    Packaging & Shipping


    1.Export Standard Packing

    2.The container packing


    Company Information


    Jinan Fucheng Hydraulic Equipment Co.,Ltd is a mining machinery enterprise integrated

    with researching and designing, manufacturing and marketing domestic and overseas. FUCHENG has subsidiary companies of scooptram, trackless equipment production company and trackless equipment parts, hydraulic product sales company, the company has obtained Europe CE certificate & ISO 9001 International Quality Certification and has professional R&D team,advanced productivity and impeccable after-sale service network.FUCHENG key value is “quality first, prestige supreme”, aiming to establish a sound quality assurance and after-sales service system. We adhere to the new concept of Focus on Market, Drive on Innovation, Survive onQuality and Strengthen on Development for modern enterprise management. FUCHENG will constantly bring first-class underground mining solutions to customers’ both at home and abroad.
